VOLTAGE DIVIDER CALCULATOR

Quick Reference

A voltage divider distributes an input voltage proportionally across two series resistors. It's heavily used for reading sensors and safely shifting logic levels (like 5V down to 3.3V).

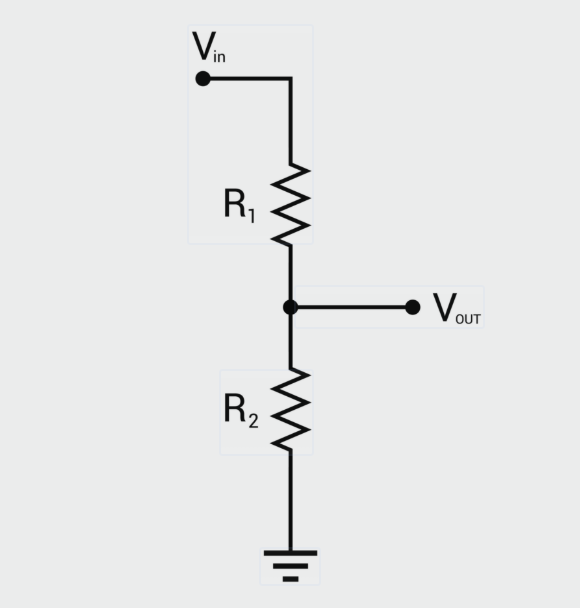

Voltage Divider Diagram
Vout = Vin ×
R2 R1 + R2
Voltage Parameters
Resistance Parameters
Waiting for 3 inputs...
