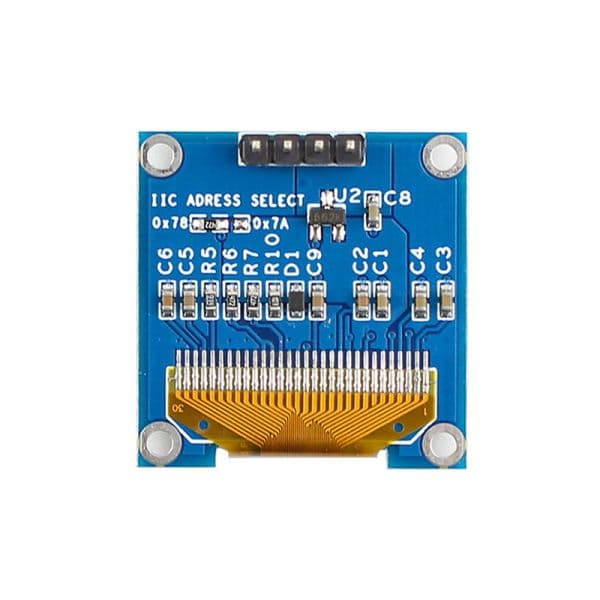

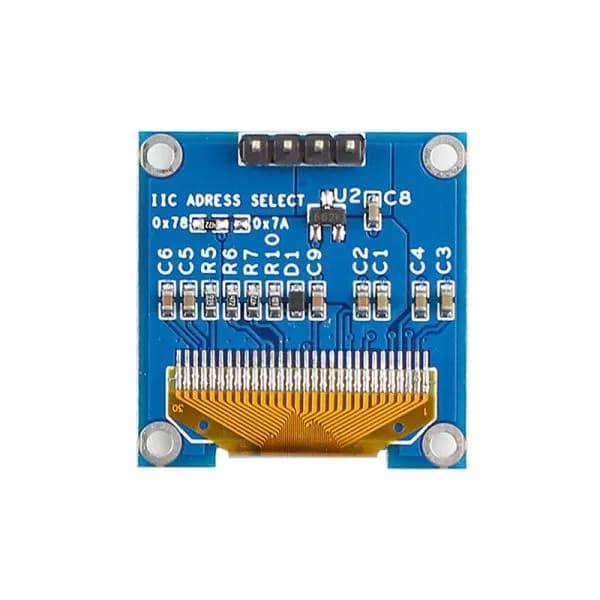

0.96" I2C OLED Display Module - 128x64 (SSD1306)
Sensors and Modules
₹210
The 0.96" I2C OLED Display is a brilliant, high-contrast screen perfect for adding a professional user interface to your electronics builds. Because the pixels emit their own light, it requires no backlight, resulting in deep blacks, crisp text, and exceptionally low power consumption. Communicating over a simple 4-wire I2C interface, it frees up valuable pins on your microcontrollers. Whether you are building a custom PICO IOT dashboard, a portable weather station, or just need to debug sensor data in real-time, this tiny but mighty display is an absolute essential for makers. Resolution: 128 x 64 pixels Interface: I2C (4-wire) Driver IC: SSD1306
Detailed Specifications
The 0.96-inch OLED module is driven by the highly compatible SSD1306 controller, making it incredibly easy to use with standard open-source libraries. With a wide viewing angle of over 160 degrees and support for both 3.3V and 5V logic, it integrates seamlessly into almost any custom circuit or robotics kit without the need for level shifters.
- Operating Voltage: 3.3V - 5V DC
- Resolution: 128 x 64 pixels
- Screen Size: 0.96 inches (Diagonal)
- Interface: I2C (IIC) standard
- Driver IC: SSD1306
- Viewing Angle: > 160°
- Power Consumption: ~0.04W (during normal operation)
- Dimensions: 27.3 mm x 27.8 mm x 3.7 mm

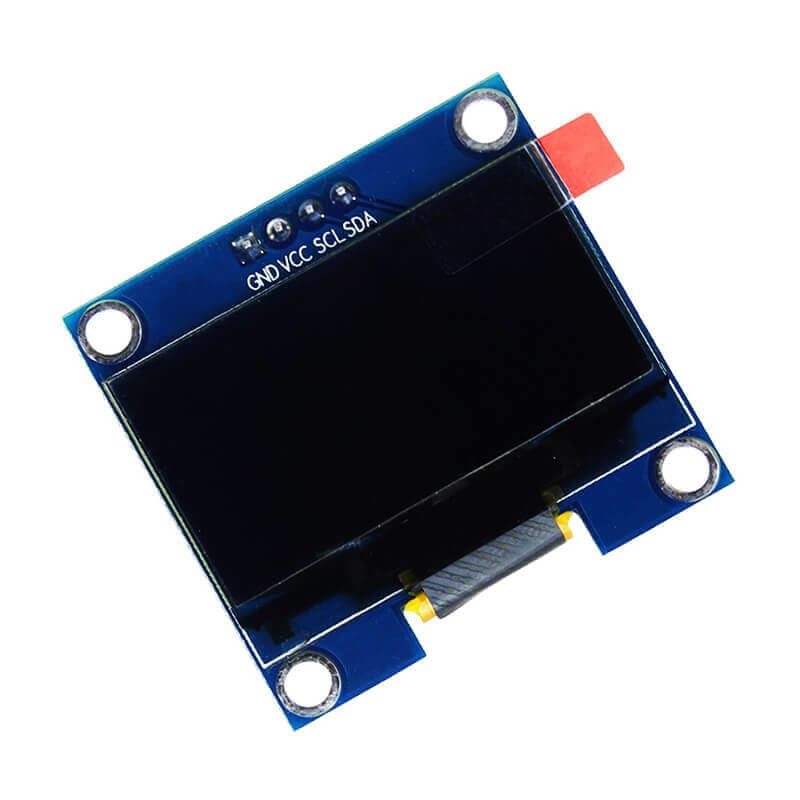

Pinout Configuration:
- VCC: Power Supply (3.3V - 5V)
- GND: Ground
- SCL: I2C Serial Clock Line
- SDA: I2C Serial Data Line
