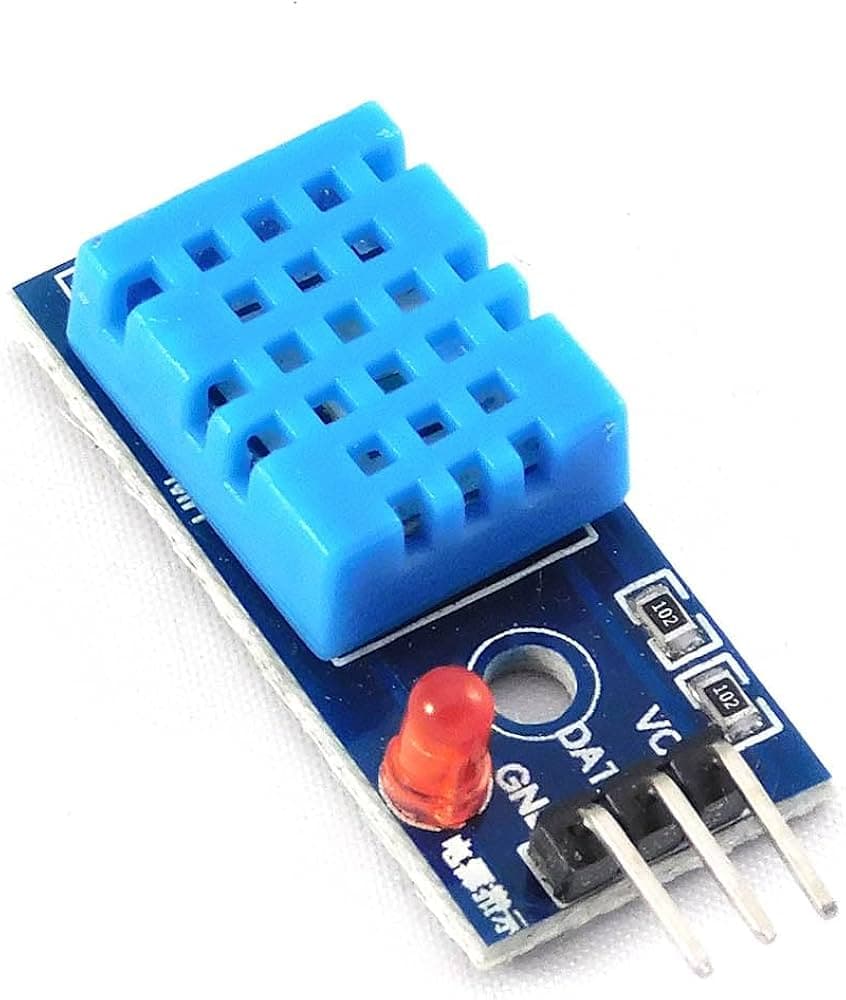

DHT11 Temperature & Humidity Sensor Module
Sensors and Modules
₹66
The DHT11 is a basic, ultra-low-cost digital temperature and humidity sensor. It is the perfect entry-level module for adding environmental monitoring capabilities to your custom smart home systems, weather stations, or automated dashboards. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, pushing out a reliable digital signal on the data pin. This makes it incredibly easy to integrate right into your Arduino starter kits or custom ESP-12F based boards without needing complex analog-to-digital conversions. Temperature Range: 0°C to 50°C Humidity Range: 20% to 90% RH Signal Type: Digital Output
Detailed Specifications
The DHT11 is a reliable, entry-level sensor ideal for hobbyists building smart agriculture monitors or climate-controlled automation. While it requires a brief delay between readings, its rock-solid stability and simple 3-wire interface make it a staple for any electronics workbench. It connects seamlessly with both 3.3V and 5V microcontrollers.
- Operating Voltage: 3.3V - 5.5V DC
- Operating Current: 0.3mA (Measuring) | 60µA (Standby)
- Temperature Range: 0°C to 50°C
- Temperature Accuracy: ±2°C
- Humidity Range: 20% to 90% RH
- Humidity Accuracy: ±5% RH
- Sampling Rate: 1 Hz (One reading every second)
- Dimensions: 15.5 mm x 12 mm x 5.5 mm

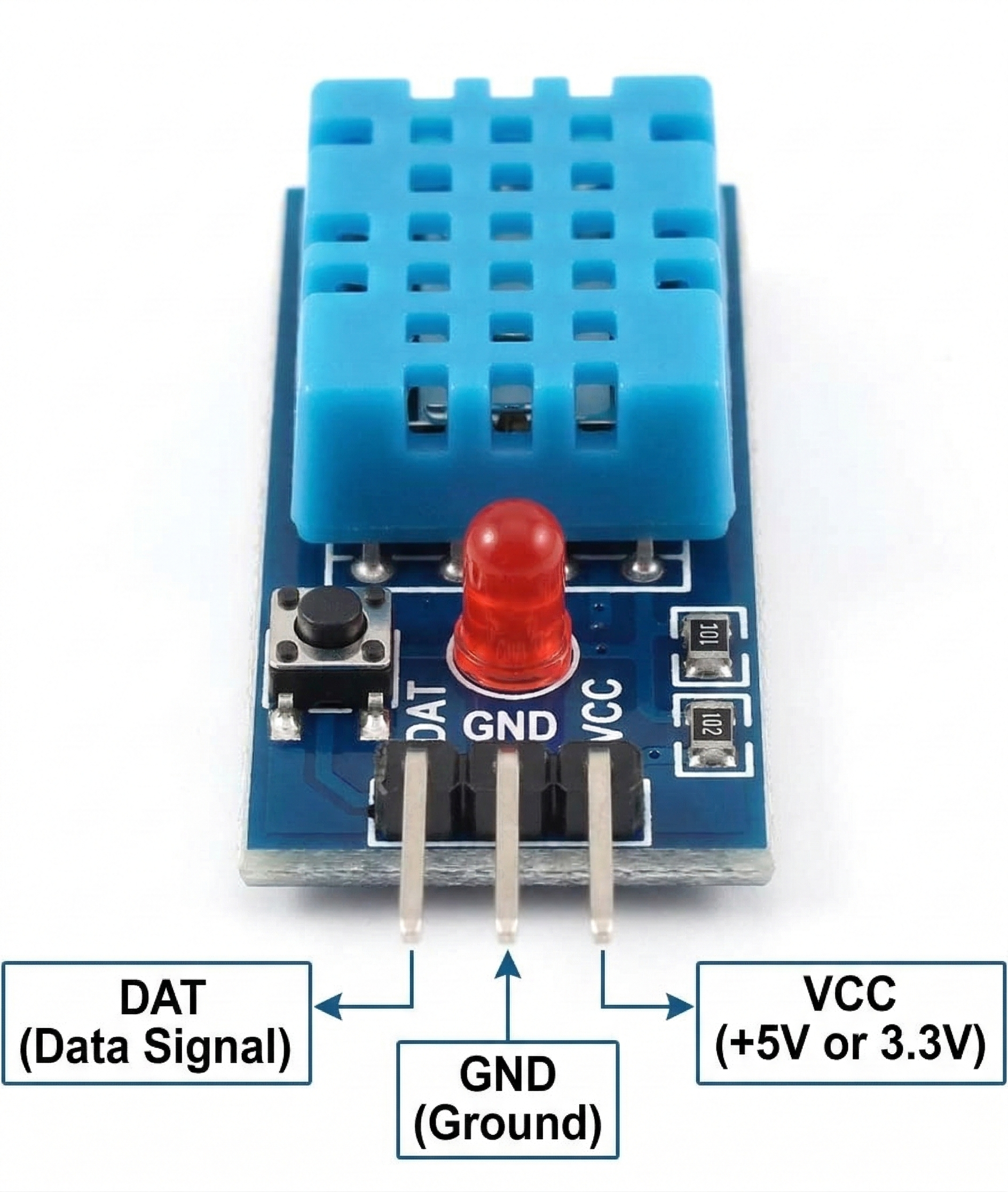

Pinout Configuration:
- VCC: Power Supply (3.3V - 5V)
- DATA: Digital Output Signal
- GND: Ground
