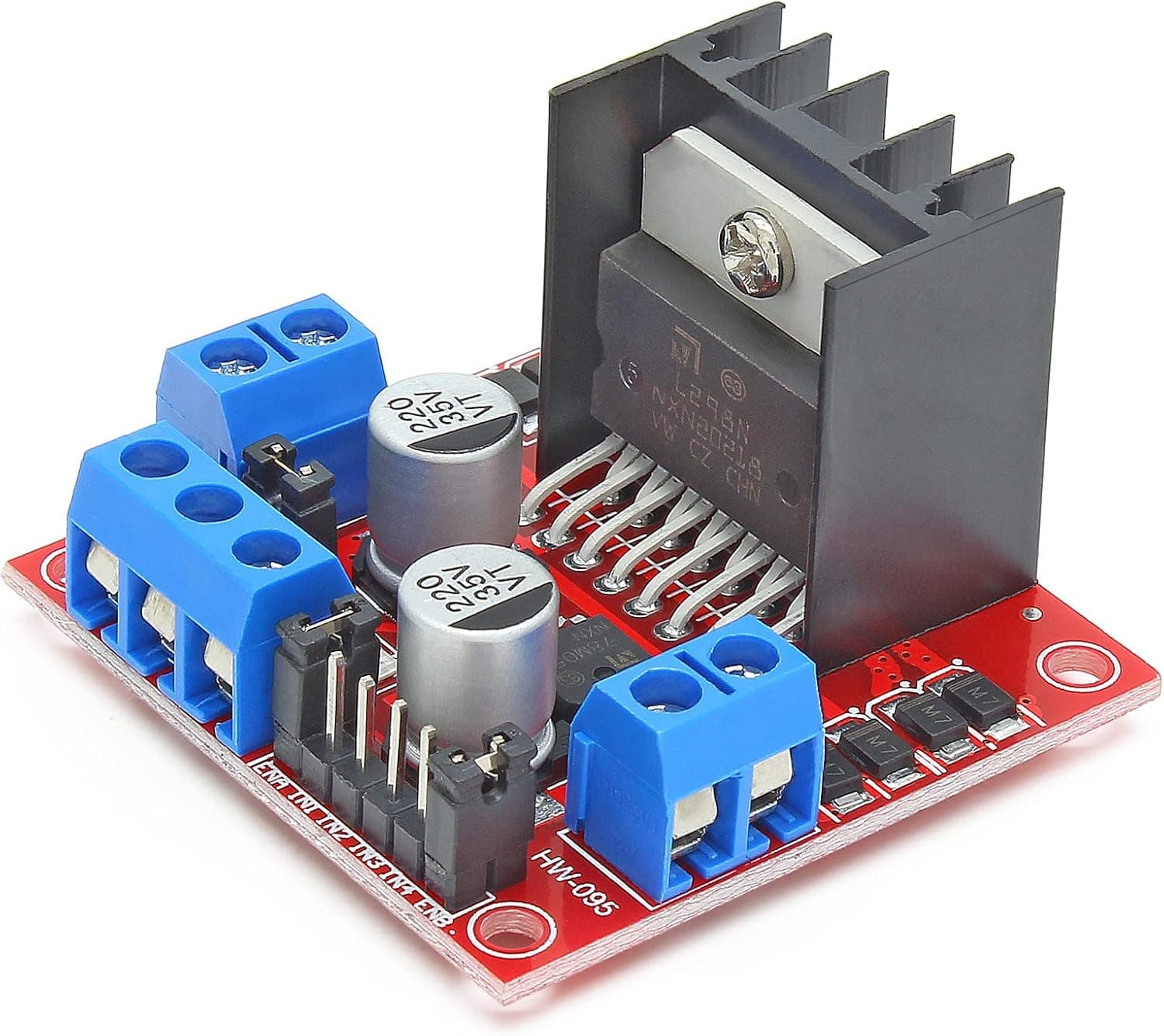

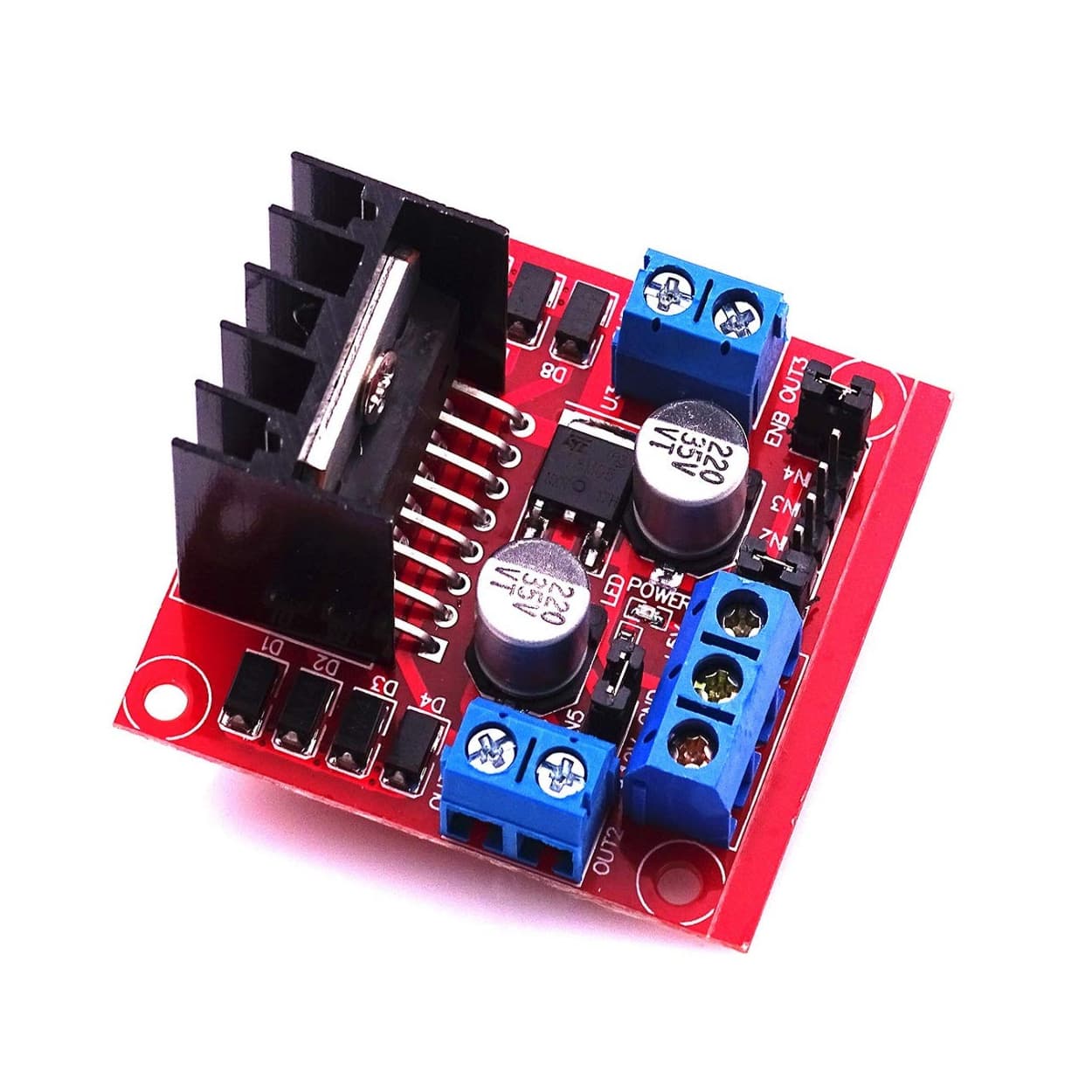

L298N Dual H-Bridge Motor Driver Module
Sensors and Modules
₹225
The L298N Dual H-Bridge Motor Driver is the absolute powerhouse you need to get your robotic wheels spinning. It is the industry standard for controlling the speed and direction of up to two DC motors simultaneously, or even a single bipolar stepper motor, making it the perfect heart for your custom 4-wheel acrylic rovers. Featuring a robust onboard heatsink to handle heavy loads without breaking a sweat, this module can push up to 2A per channel. It even includes a built-in 5V regulator, allowing you to power your microcontroller directly from the motor driver board for a clean, efficient, and professional wiring setup. Motor Voltage: 5V to 35V Peak Current: 2A per channel Control: 2 DC Motors or 1 Stepper Motor
Detailed Specifications
The L298N uses a high-power Dual H-Bridge configuration, allowing you to independently control the forward and reverse movements of two separate motors. Whether you are building an autonomous obstacle-avoiding chassis or a custom Wi-Fi-controlled racer, this rugged module delivers the reliable muscle required to translate your logic signals into physical motion.
- Motor Supply Voltage (Maximum): 5V - 35V DC
- Logic Supply Voltage: 5V DC (Internal regulator can be enabled via jumper)
- Continuous Current: 2A per channel
- Peak Current: 3A per channel (for brief bursts)
- Max Power Dissipation: 25W (with heatsink)
- Control Logic: Standard TTL (Fully compatible with 3.3V boards like ESP32 and NodeMCU)
- Dimensions: 43 mm x 43 mm x 27 mm
Pinout Configuration:
- OUT1 & OUT2: Motor A Connections
- OUT3 & OUT4: Motor B Connections
- 12V (or VCC): Motor Power Supply Input (Up to 35V)
- GND: Ground (Must share a common ground with your microcontroller)
- 5V: 5V Power Output (Powers your board if the 12V jumper is on)
- ENA & ENB: PWM Speed Control for Motor A and Motor B
- IN1, IN2, IN3, IN4: Direction Control Pins (High/Low logic)
