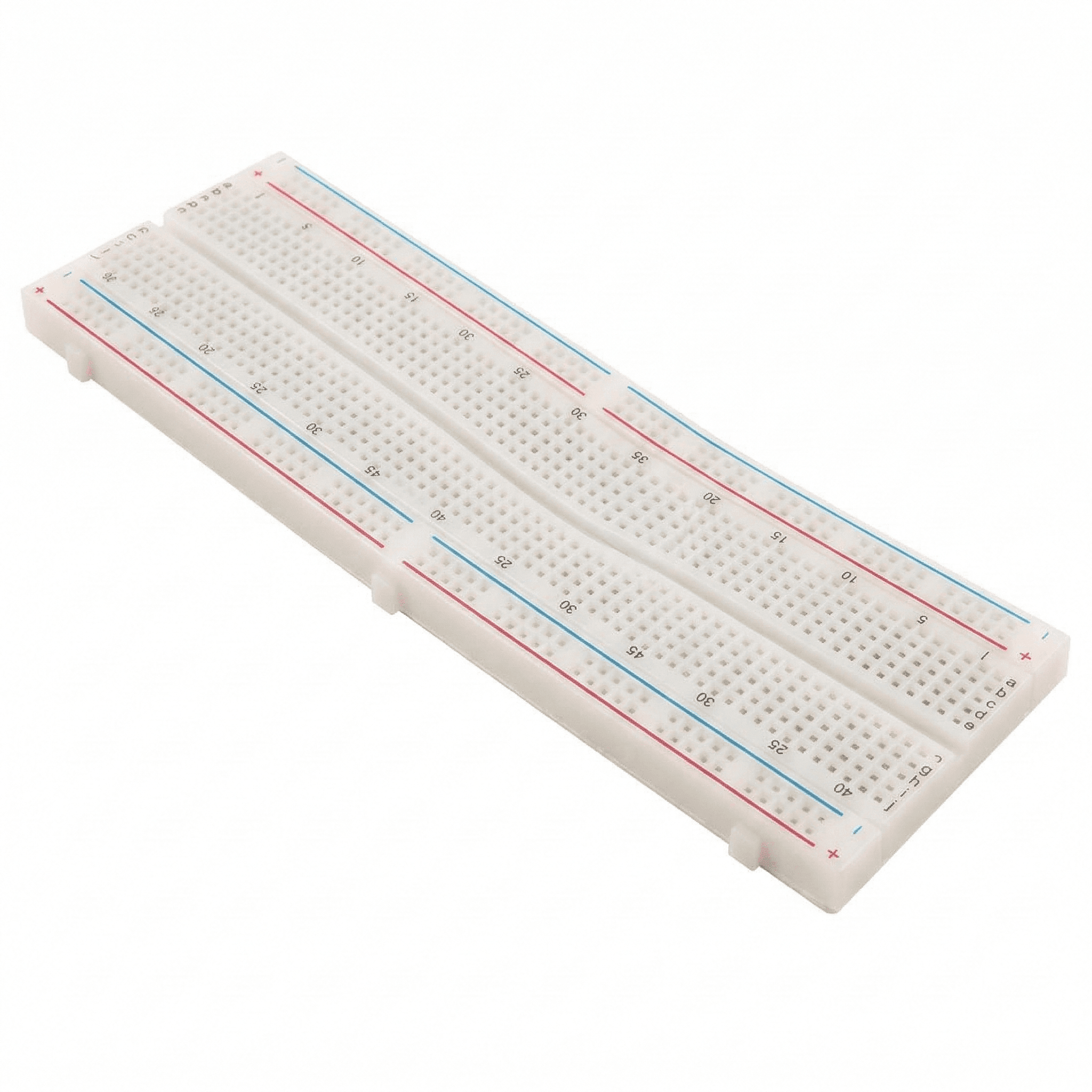

830 Tie-Point Solderless Breadboard
Prototyping & Connectivity
₹75
The MB-102 830 Tie-Point Solderless Breadboard is the ultimate foundation for prototyping and testing your electronic circuits. It provides a massive workspace for securely plugging in your microcontrollers, sensors, and discrete components without the need for any messy soldering. Designed for both beginners learning the ropes and professionals designing complex custom systems, this full-sized board features standardized hole spacing. It includes dual power rails on both sides, making it incredibly easy to distribute 3.3V and 5V logic across your entire project effortlessly. Total Tie-Points: 830 Wire Compatibility: 21 to 26 AWG Mounting Type: Self-Adhesive Backing
Detailed Specifications
The MB-102 is built with high-quality nickel-plated phosphor bronze spring clips, ensuring a tight, reliable grip on your component leads even after hundreds of insertions. The modular design features interlocking tabs, allowing you to snap multiple breadboards together for massive, multi-board PICO IOT or complex robotic control circuits.
- Total Tie-Points: 830
- Terminal Strip Area: 630 tie-points (126 nodes of 5 interconnected points each)
- Power Distribution Strips: 200 tie-points (4 power rails, 50 points each)
- Pitch Pattern: Standard 2.54mm (0.1") hole spacing (Perfect for ICs and DIP components)
- Contact Material: Phosphor bronze with nickel plating
- Housing Material: Durable White ABS Plastic
- Voltage & Current Rating: ~300V / 3A to 5A (Maximum limits)
- Dimensions: 165 mm x 55 mm x 8.5 mm
Layout Configuration:
- Central Area: Two distinct columns of 63 rows (labelled A-E and F-J), separated by a center channel designed specifically for straddling standard IC (Integrated Circuit) chips.
- Power Rails: Two full-length, independent power strips on both the left and right sides (marked with Red lines for VCC and Blue/Black lines for GND).
- Base: Features a peel-and-stick adhesive backing for permanent mounting onto acrylic robot chassis or project boxes.
