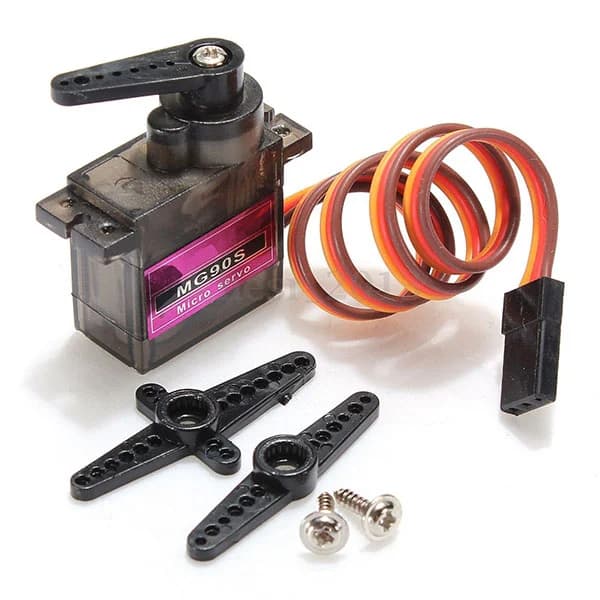

TowerPro MG90S Metal Gear Micro Servo Motor (180° Rotation)
Mechatronics and Robotics
₹145
The MG90S is a compact, high-output micro servo motor featuring durable metal gears. It is a rugged, lightweight actuator perfect for robotics, RC aeroplanes, and DIY electronics. - Torque: Up to 2.2 kg-cm - Rotation: 180° - Gear Type: Metal
Detailed Specifications
The MG90S Metal Gear Micro Servo is built to handle higher shock loads and wear-and-tear than standard plastic servos. Operating smoothly between 4.8V and 6.6V, it delivers precise positioning and fast response times. Its universal 3-wire connector makes it beginner-friendly and plug-and-play compatible with most microcontrollers like Arduino and NodeMCU.
- Operating Voltage: 4.8V - 6.6V DC
- Stall Torque: 1.8 kg-cm (@ 4.8V) | 2.2 kg-cm (@ 6.6V)
- Operating Speed: 0.10 sec/60° (@ 4.8V) | 0.08 sec/60° (@ 6.6V)
- Rotation Angle: 180°
- Gear Type: Metal
- Weight: 13.4g
- Dimensions: 22.8 mm x 12.2 mm x 28.5 mm
- Pinout: Brown (GND), Red (VCC), Orange (PWM Signal)
