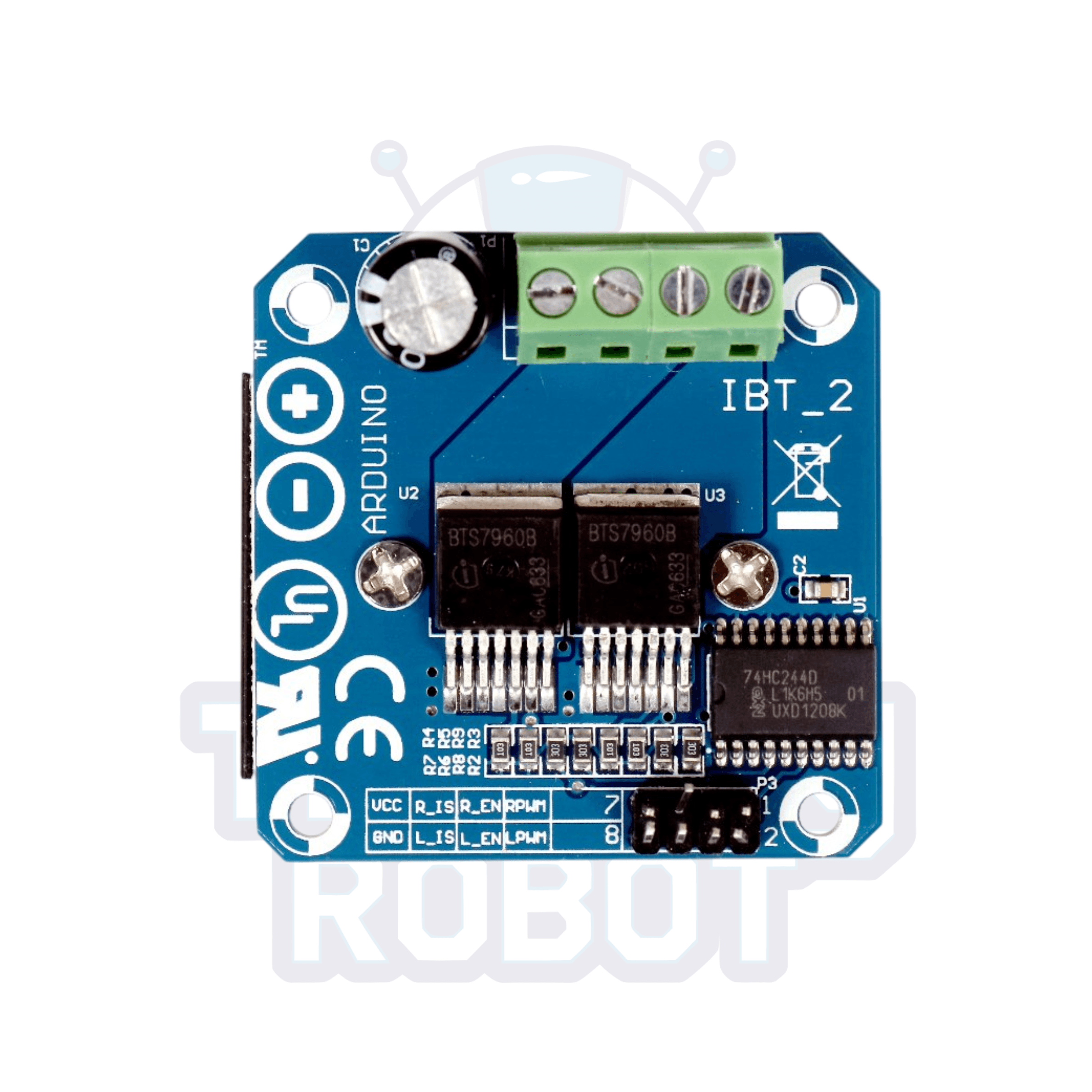

BTS7960B 43A H-Bridge High-Power Motor Driver Module

Name: BTS7960B 43A H-Bridge High-Power Motor Driver Module
Brand: Thinking Robot
SKU: TR-MD-BTS7960B
Price: 450 INR
Availability: InStock

SKU: TR-MD-BTS7960B

₹450inclusive of all taxes

Only 5 left—order soon

Estimated delivery

Fri, 31 Jul

★

Shipping benefit

Free shipping ₹1,499+^*

*Standard delivery; eligible order value applies.

A high-current H-bridge motor driver module for bidirectional speed and direction control of powerful brushed DC motors. It accepts 3.3V and 5V logic-level control signals and is suitable for heavy robotic platforms, automation systems, and high-torque motor projects.

Secure payments

Expert support

Easy replacements

Everything you need to know

Product details

BTS7960B 43A H-Bridge Motor Driver Module

The BTS7960B motor driver module is designed for controlling one high-current brushed DC motor in both directions. It provides PWM-based speed control and direction control while allowing a microcontroller to remain electrically separated from the motor's high-current power path.

Key Features

Bidirectional control of one brushed DC motor
Compatible with 3.3V and 5V microcontroller logic
Supports PWM speed control
Integrated overcurrent, overtemperature, overvoltage and undervoltage protection
Suitable for Arduino, ESP32, Raspberry Pi and other controllers
Useful for heavy robotic platforms, electric actuators and automation projects

Technical Specifications

Feature	Specification
Motor Supply Voltage	6V to 27V DC
Logic Input Level	3.3V to 5V
Maximum Current Rating	Up to 43A peak/module rating
PWM Frequency	Up to 25kHz
Driver Configuration	Full H-bridge using dual BTS7960B half-bridge drivers
Approximate Dimensions	50 × 50 × 43mm
Approximate Weight	67g

Usage Note

The practical continuous current depends on heatsinking, airflow, PCB quality, wire gauge, connectors and motor load. Use a suitably rated external motor power supply and connect the controller ground correctly.
