NEO-6M GPS Module with Ceramic Antenna

Sensors and Modules

699

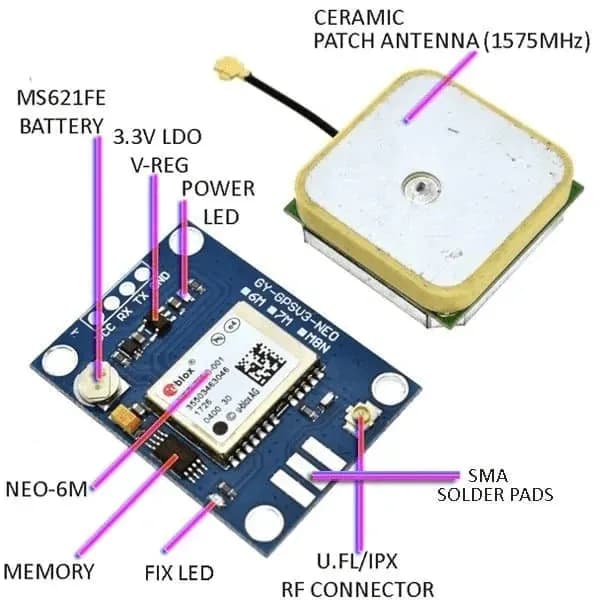

If you are building a drone, an autonomous rover, or a vehicle tracker (like the ones used in VHMS), you need GPS. The NEO-6M is the industry standard for hobbyist and pro-sumer positioning. Unlike simpler sensors, this module communicates via UART (Serial), sending standard NMEA sentences that are easy to parse with libraries like TinyGPS++. It features an onboard EEPROM to save configuration settings and a backup battery that keeps the satellite data stored when power is cut, allowing for a "Hot Start" (getting a GPS lock in seconds instead of minutes) when turned back on.

1

Key Features

  • Module: u-blox NEO-6M GPS Receiver.
  • Interface: UART (Serial) - TX/RX.
  • Baud Rate: 9600 bps (Default).
  • Voltage: 3.3V - 5V DC Input.
  • Antenna: Ceramic active antenna (IPEX/U.FL connector).
  • Sensitivity: -161 dBm (Tracking).
  • Features: EEPROM for saving config + Battery for backup.

Pinout

  1. VCC: Power Supply (3.3V - 5V)
  2. RX: Serial Data Receive (Connect to MCU TX)
  3. TX: Serial Data Transmit (Connect to MCU RX)
  4. GND: Ground
